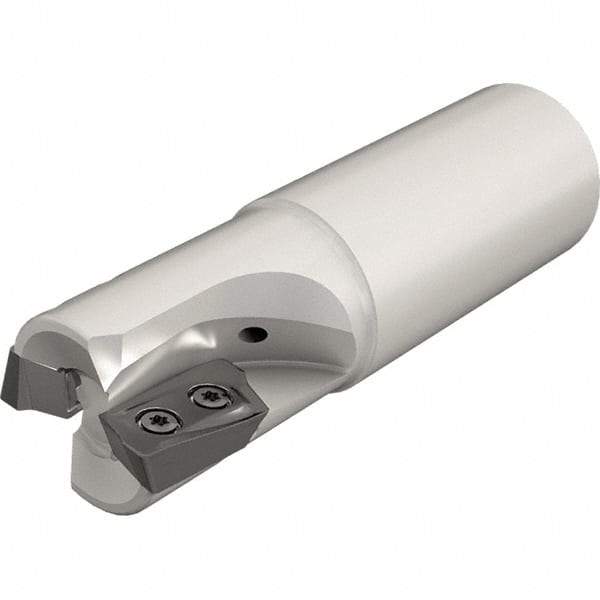

Iscar - 1-1/2" Cut Diam, 0.827" Max Depth of Cut, 1-1/4" Shank Diam, 4.05" OAL, Indexable Square Shoulder End Mill - HP ADCR 2207.., HP ADCT 2207.., HP ADKT 2207.. Inserts, Weldon Shank, 90° Lead Angle, Through Coolant, Series Heliplus
Item #: 31990385
Brand: Iscar
Model #: 3181181
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.0500 |
| Lead Angle | 90 |
| Series | Heliplus |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.8270 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HPE90AT-22 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.7700 |
| Weldon Flat | Yes |
| Insert Compatibility | HP ADCR 2207.., HP ADCT 2207.., HP ADKT 2207.. |
