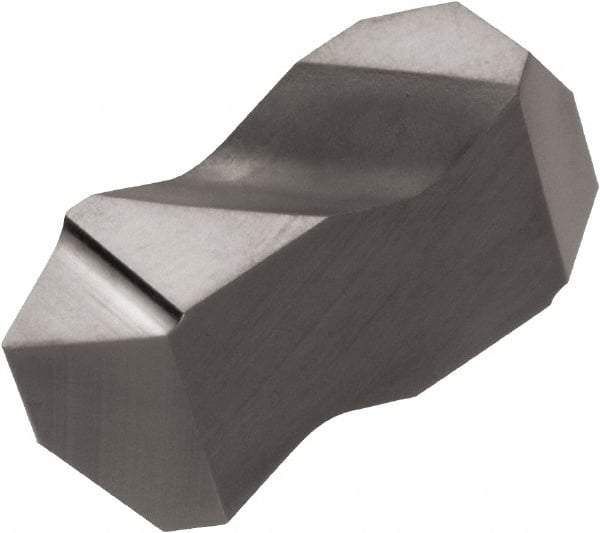

Kyocera - KCTP3 Grade PR1215, Internal/External ISO & UN Threading Insert - 6 to 20 TPI Ext Pitch, 5 to 12 TPI Int Pitch, Right Hand Insert, Megacoat Finish, Carbide
Item #: 31847973
Brand: Kyocera
Model #: 8850703
Exact Tooling IR#: 04
Features and Benefits
MEGACOAT is a high strength super micro-grain substrate designed for superior hardness, toughness and heat resistance. It offers good surface smoothness and is ideal for machining steel and stainless steel.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | KCTP |
| Insert Size | 3 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | ISO; UN |
| Material Grade | Micrograin |
| Manufacturer's Grade | PR1215 |
| Internal Pitch/TPI | 5-12 TPI |
| External Pitch/TPI | 6-20 TPI |
| Coating | Megacoat |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | KCTP3RPR1215 |
| Corner Radius (Decimal Inch) | 0.0070 |
| Thickness (Decimal Inch) | 0.1950 |
| Series | KCTP |
| Included Angle of Threading Tip | 60 |
| Tip to Top of Insert (Decimal Inch) | 0.3440 |
| Overall Length (Decimal Inch) | 0.0980 |
| Manufacturers Catalog Number | KCTP-3R |
