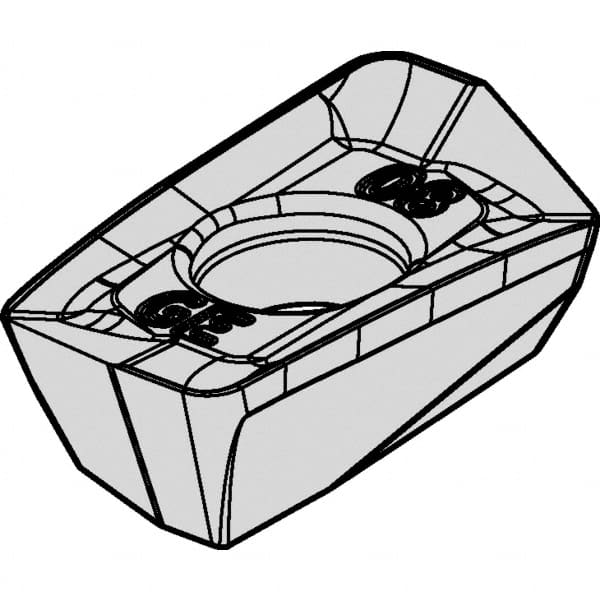

Kennametal - EP101008 GE Grade KCPM20 Carbide Milling Insert - TiN Finish, 3.75mm Thick, 3mm Inscribed Circle, 0.79mm Corner Radius
Item #: 31701386
Brand: Kennametal
Model #: 4089042
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EP10 |
| Insert Size | 1008 |
| Material | Carbide |
| Manufacturer's Grade | KCPM20 |
| Coating | TiN |
| Width (mm) | 6.74 |
| Length (mm) | 10.36 |
| Inscribed Circle (mm) | 3.00 |
| Thickness (mm) | 3.75 |
| Corner Radius (mm) | 0.79 |
| Hole Diameter (mm) | 3.00 |
| Coating Process | CVD |
| Included Angle | 75 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | GE |
