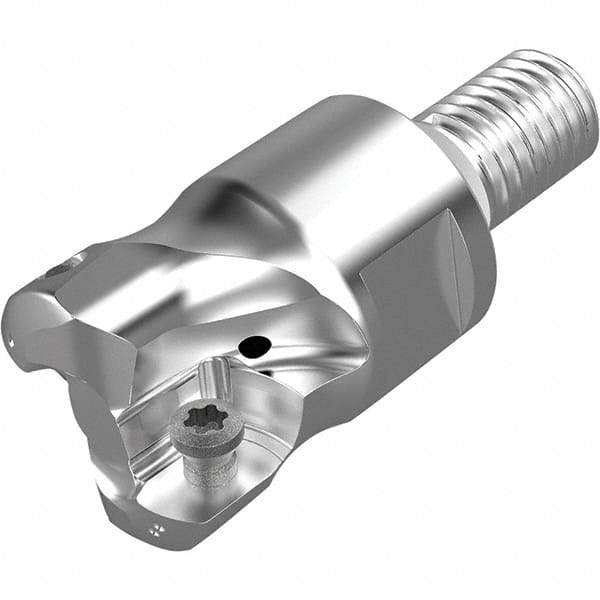

Seco - 12.4mm Cut Diam, 1.8mm Max Depth, M20 20mm Shank Diam, Modular Connection Indexable High-Feed End Mill - Screw Holding Method, LPKT09 Insert, R217.21 Toolholder, Through Coolant
Item #: 31634603
Brand: Seco
Model #: 03212883
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.40 |
| Maximum Depth of Cut (mm) | 1.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.0700 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 20.00 |
| Modular Connection Size | M20 |
| Number of Cutter Inserts | 2 |
| Insert Style | LPKT09 |
| Toolholder Style | R217.21 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Number of Flutes | 2 |
| Maximum RPM | 35200 |
| Through Coolant | Through Coolant |
| Head Length (Decimal Inch) | 1.3800 |
