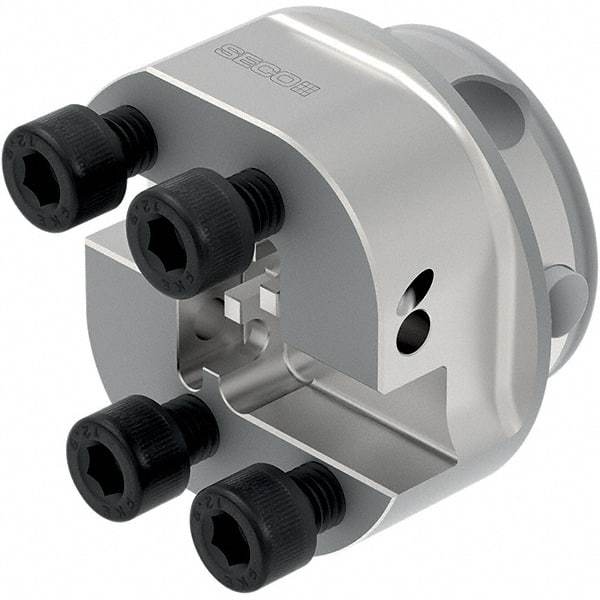

Seco - 60mm Body Diam, Manual Rough Boring Head - 66mm to 88mm Bore Diam, 66mm Bar Hole Diam
Item #: 31619836
Brand: Seco
Model #: 03204092
Exact Tooling IR#: 04
Features and Benefits
Roughing boring heads are designed for high-speed metal removal. They are used for heavy, roughing operations on difficult-to-machine materials.
Threaded mount boring heads have an internal thread for securing to a boring head shank.
| Product Specifications | |
|---|---|
| Type | Rough Boring Head |
| Actuation Type | Manual |
| Body Diameter (mm) | 60.00 |
| Body Diameter (Decimal Inch) | 2.3600 |
| Mount Type | Threaded Mount |
| Shank Type | Straight Shank |
| Taper Size | GL60 |
| Shank Diameter (Decimal Inch) | 2.3600 |
| Modular Connection Size | BA060 |
| Shank Diameter (mm) | 60.00 |
| Series | EPB |
| Boring Bar Hole Diameter (mm) | 66.00 |
| Boring Bar Hole Diameter (Decimal Inch) | 2.6000 |
| Minimum Bore Diameter (Decimal Inch) | 2.6000 |
| Minimum Bore Diameter (mm) | 66.00 |
| Maximum Bore Diameter (mm) | 88.00 |
| Maximum Bore Diameter (Decimal Inch) | 3.4600 |
| Overall Length (mm) | 38.50 |
| Overall Length (Decimal Inch) | 1.5200 |
