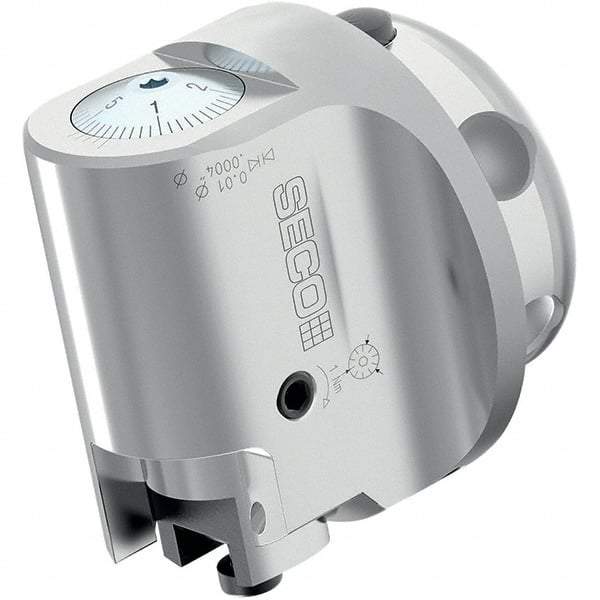

Seco - 60mm Body Diam, Manual Fine Boring Head - 65mm to 87mm Bore Diam, 65mm Bar Hole Diam
Item #: 31619810
Brand: Seco
Model #: 03204094
Exact Tooling IR#: 04
Features and Benefits
Fine boring heads are use in applications where high precision and close-hole tolerances are required. The design increases quality and improved productivity during an operation.
Threaded mount boring heads have an internal thread for securing to a boring head shank.
| Product Specifications | |
|---|---|
| Type | Fine Boring Head |
| Actuation Type | Manual |
| Body Diameter (mm) | 60.00 |
| Body Diameter (Decimal Inch) | 2.3600 |
| Mount Type | Threaded Mount |
| Shank Type | Straight Shank |
| Taper Size | GL60 |
| Shank Diameter (Decimal Inch) | 2.3600 |
| Modular Connection Size | BA060 |
| Shank Diameter (mm) | 60.00 |
| Series | EPB |
| Boring Bar Hole Diameter (mm) | 65.00 |
| Boring Bar Hole Diameter (Decimal Inch) | 2.5600 |
| Minimum Bore Diameter (Decimal Inch) | 2.5600 |
| Minimum Bore Diameter (mm) | 65.00 |
| Maximum Bore Diameter (mm) | 87.00 |
| Maximum Bore Diameter (Decimal Inch) | 3.4300 |
| Overall Length (mm) | 55.70 |
| Overall Length (Decimal Inch) | 2.1900 |
