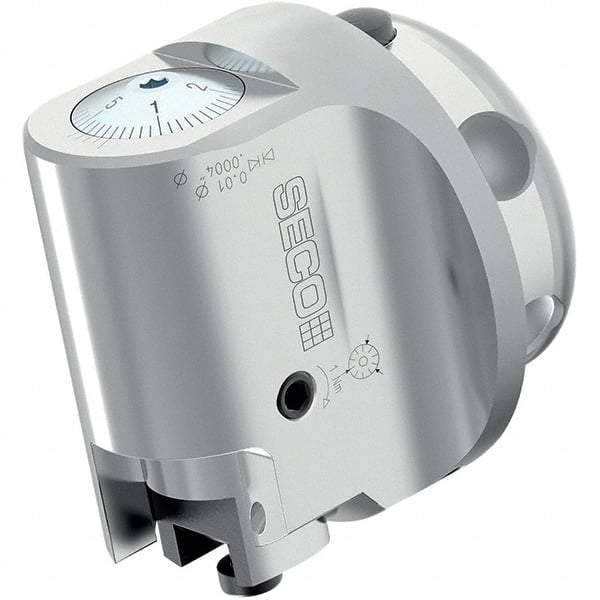

Seco - 80mm Body Diam, Manual Fine Boring Head - 85mm to 115mm Bore Diam, 85mm Bar Hole Diam
Item #: 31619802
Brand: Seco
Model #: 03204095
Exact Tooling IR#: 04
Features and Benefits
Fine boring heads are use in applications where high precision and close-hole tolerances are required. The design increases quality and improved productivity during an operation.
Threaded mount boring heads have an internal thread for securing to a boring head shank.
| Product Specifications | |
|---|---|
| Type | Fine Boring Head |
| Actuation Type | Manual |
| Body Diameter (mm) | 80.00 |
| Body Diameter (Decimal Inch) | 3.1500 |
| Mount Type | Threaded Mount |
| Shank Type | Straight Shank |
| Taper Size | GL80 |
| Shank Diameter (Decimal Inch) | 3.1500 |
| Modular Connection Size | BA080 |
| Shank Diameter (mm) | 80.00 |
| Series | EPB |
| Boring Bar Hole Diameter (mm) | 85.00 |
| Boring Bar Hole Diameter (Decimal Inch) | 3.3500 |
| Minimum Bore Diameter (Decimal Inch) | 3.3500 |
| Minimum Bore Diameter (mm) | 85.00 |
| Maximum Bore Diameter (mm) | 115.00 |
| Maximum Bore Diameter (Decimal Inch) | 4.5300 |
| Overall Length (mm) | 58.20 |
| Overall Length (Decimal Inch) | 2.2900 |
