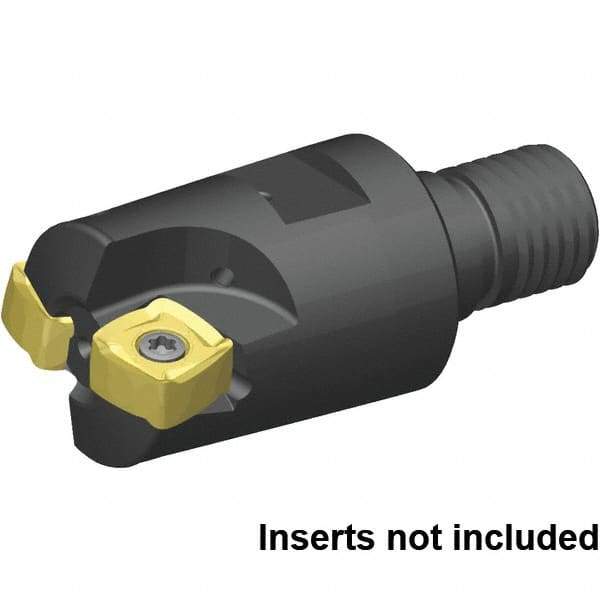

Kennametal - 38.1mm Cut Diam, 2.5mm Max Depth, M16 29mm Shank Diam, Modular Connection Indexable High-Feed End Mill - Screw Holding Method, XO..1205.. Insert, 7793VXO Toolholder, Through Coolant
Item #: 31609357
Brand: Kennametal
Model #: 5675986
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 38.10 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (mm) | 2.50 |
| Shank Type | Modular Connection |
| Shank Diameter (mm) | 29.00 |
| Modular Connection Size | M16 |
| Number of Cutter Inserts | 3 |
| Insert Style | XO..1205.. |
| Toolholder Style | 7793VXO |
| Insert Holding Method | Screw |
| End Mill Type | High Feed |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum RPM | 27500 |
| Through Coolant | Yes |
| Maximum Cutting Diameter (Decimal Inch) | 1.50 |
| Overall Length (mm) | 66.00 |
| Manufacturers Catalog Number | A7793VXO12SA01.50Z3R2 |
