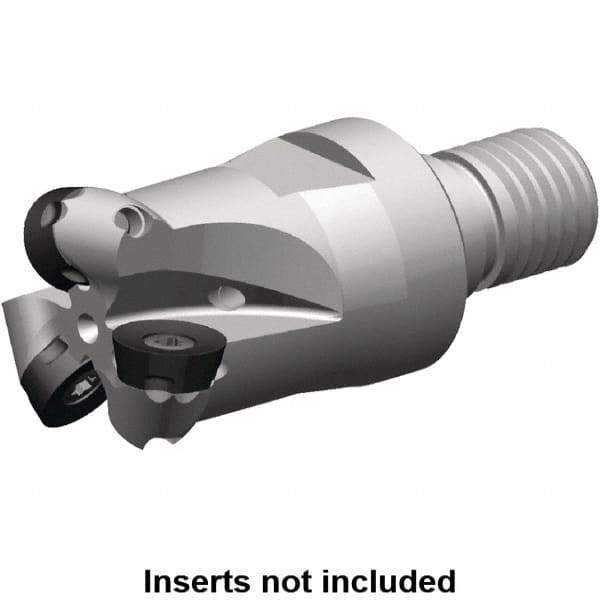

Kennametal - 13mm Cutting Diam, 21mm Shank Diam, 0.984" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 2 Inserts, RP.. 1204M0.. Insert, 7713 Toolholder, Steel, Through Coolant
Item #: 31595804
Brand: Kennametal
Model #: 5672236
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M12 |
| Number of Cutter Inserts | 2 |
| Insert Style | RP.. 1204M0.. |
| Toolholder Style | 7713 |
| Series | 7713 |
| Overall Length (mm) | 57.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 13.00 |
| Head Length (mm) | 35.00 |
| Shank Length (mm) | 22.00 |
| Maximum RPM | 50000 |
| Maximum Cutting Diameter (Decimal Inch) | 0.9840 |
| Minimum Cutting Diameter (Decimal Inch) | 0.5120 |
| Modular Connection Size | M12 |
