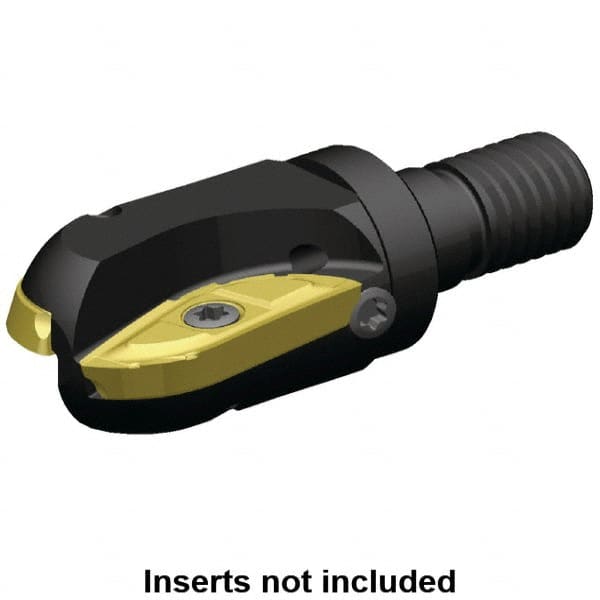

Kennametal - 1-1/4" Cutting Diam, 29mm Shank Diam, Modular Connection Indexable Copy End Mill - 2 Inserts, XPNT101043RF Insert, 5505 Toolholder, Steel, Through Coolant
Item #: 31595770
Brand: Kennametal
Model #: 5672841
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (Decimal Inch) | 1.2500 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Cutter Inserts | 2 |
| Insert Style | XPNT101043RF |
| Toolholder Style | 5505 |
| Series | 5505 |
| Overall Length (mm) | 73.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (mm) | 31.75 |
| Head Length (mm) | 50.00 |
| Shank Length (mm) | 23.00 |
| Maximum RPM | 23500 |
| Minimum Cutting Diameter (Decimal Inch) | 1.2500 |
| Modular Connection Size | M16 |
