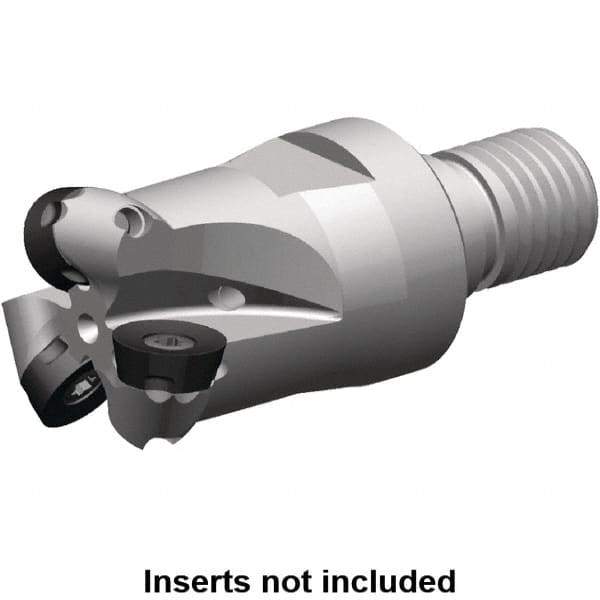

Kennametal - 15mm Cutting Diam, 29mm Shank Diam, 1-1/4" Max Depth of Cut, Modular Connection Indexable Copy End Mill - 4 Inserts, RP.. 10T3M0.. Insert, 7713 Toolholder, Steel, Through Coolant
Item #: 31595648
Brand: Kennametal
Model #: 5673043
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/4 |
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Maximum Depth of Cut (mm) | 5.00 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Cutter Inserts | 4 |
| Insert Style | RP.. 10T3M0.. |
| Toolholder Style | 7713 |
| Series | 7713 |
| Overall Length (mm) | 66.00 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 21.77 |
| Head Length (mm) | 43.00 |
| Shank Length (mm) | 23.00 |
| Maximum RPM | 53500 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2500 |
| Modular Connection Size | M16 |
