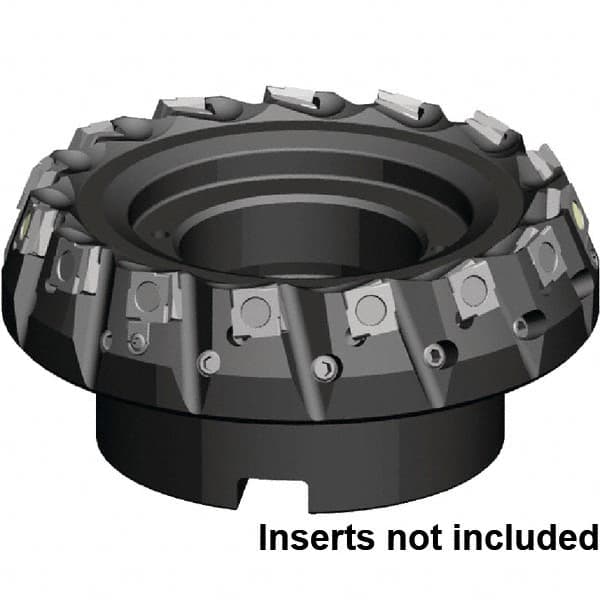

Kennametal - 125mm Cut Diam, 40mm Arbor Hole, 6.5mm Max Depth of Cut, 20° Indexable Chamfer & Angle Face Mill - 12 Inserts, SPHX 15T6... Insert, Right Hand Cut, 12 Flutes, Through Coolant, Series Fix-Perfect
Item #: 31586019
Brand: Kennametal
Model #: 1802595
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Cutting Diameter (Decimal Inch) | 4.9213 |
| Arbor Hole Diameter (mm) | 40.00 |
| Lead Angle | 20 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | SPHX 15T6... |
| Series | Fix-Perfect |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 6.50 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Clamp |
| Cutter Style | SPHX |
| Number of Flutes | 12 |
| Cutting Rake Angle | 2 |
| Hub Diameter (mm) | 94.00 |
| Keyway Width (mm) | 16.48 |
| Maximum RPM | 2500 |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
