![Turning Insert [DELETE]](http://americasind.com/cdn/shop/products/3149656-21_1024x1024.jpg?v=1675176665)

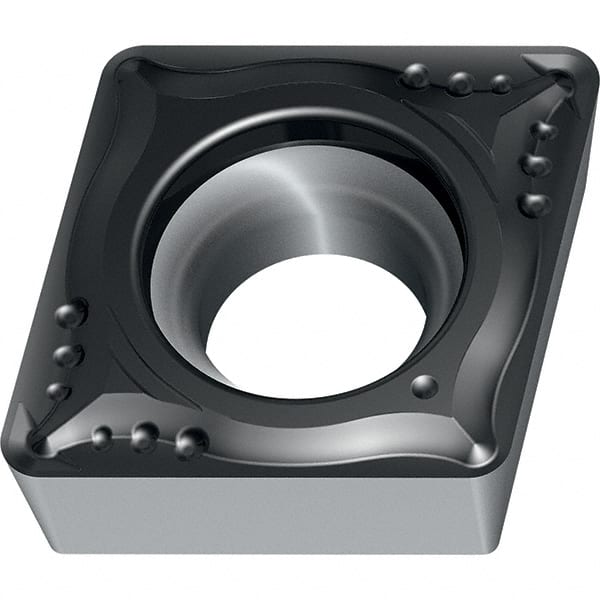

Turning Insert [DELETE]
Item #: 31496565
Brand: Walter
Model #: 7469030
Product Specifications
| Insert Style | CPMT |
| Insert Shape Code | C |
| Insert Size Code | 15121 |
| Insert Shape | Diamond |
| Clearance Code | P |
| Tolerance Code | M |
| Manufacturer Grade | WPP20S |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Included Angle | 80.0 |
| Coating Process | CVD |
| Rake | Positive |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Ansi Code | CPMT1.5(1.2)1MP4WPP20S |
| Iso Code | CPMT04T104-MP4 WPP20S |
| Standards | ISO; ANSI |
| Chip Breaker | MP4 |
