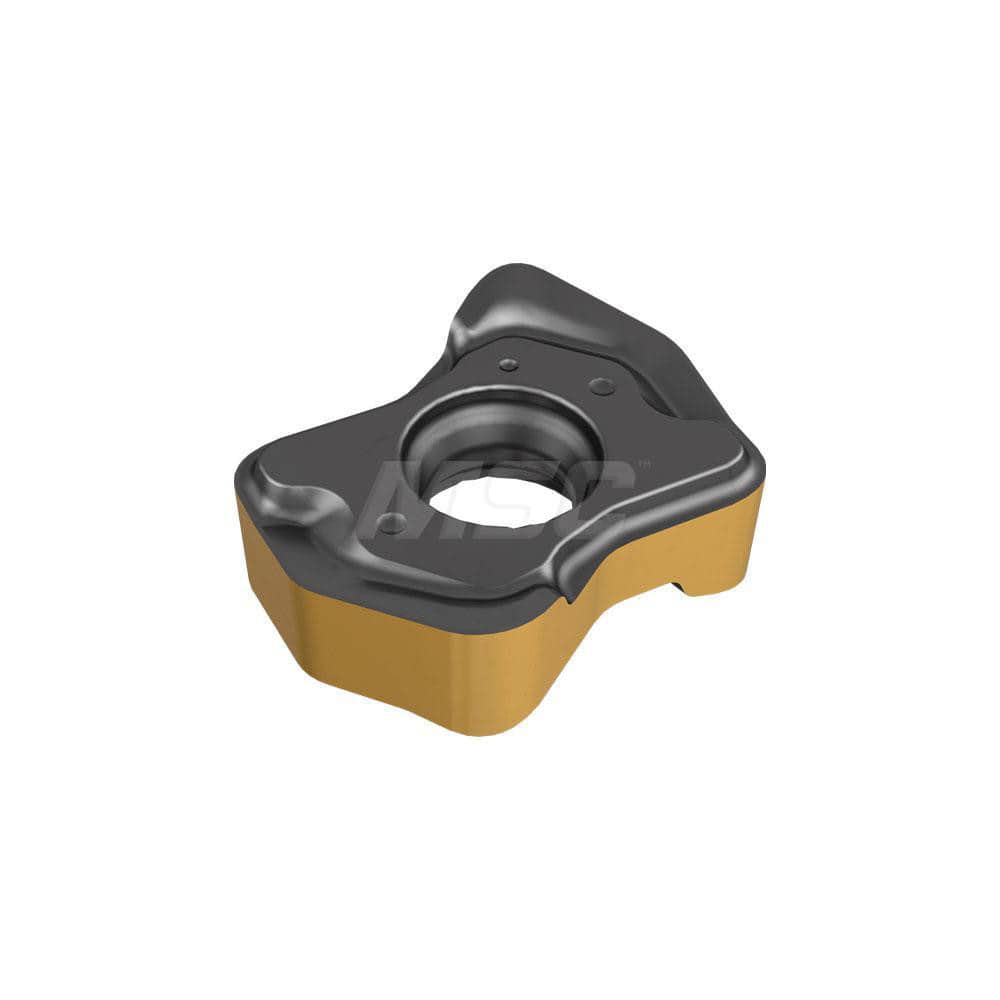

FFX4XNMU040310HP IC882 Carbide Milling Insert TiAIN/TiN Finish, 9.58mm Long x 6mm Thick x 7.16mm Wide
Item #: 31320708
Brand: Iscar
Model #: 3336664
Product Specifications
| Insert Style | XNMU |
| Insert Size Code | 040310 |
| Insert Size | 040310 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC882 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Corner Radius (Decimal Inch) | 0.0393 |
| Corner Radius (mm) | 1.00 |
| Length Range (Decimal Inch) | 0.3200 to 0.4000 |
| Series | LOGIQ4FEED |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.0354 |
| Maximum Depth of Cut (mm) | 0.90 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Bone |
| Primary Workpiece Material | Superalloy |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material Code | S |
| Iso Code | FFX4 XNMU 040310HP |
| Standards | ISO 13399 |
| Cutter Series Compatibility | FFX4 |
| Chip Breaker | HP |
| Thickness (mm) | 6.00 |
| Coating/Finish | Coated |
| Included Angle Degree | 17 |
| Length | 9.58 |
| Width (Decimal Inch - 4 Decimals) | 0.2818 |
| Width (Mm - 2 Decimals) | 7.16 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2360 |
| Length (Decimal Inch - 4 Decimals) | 0.3771 |
