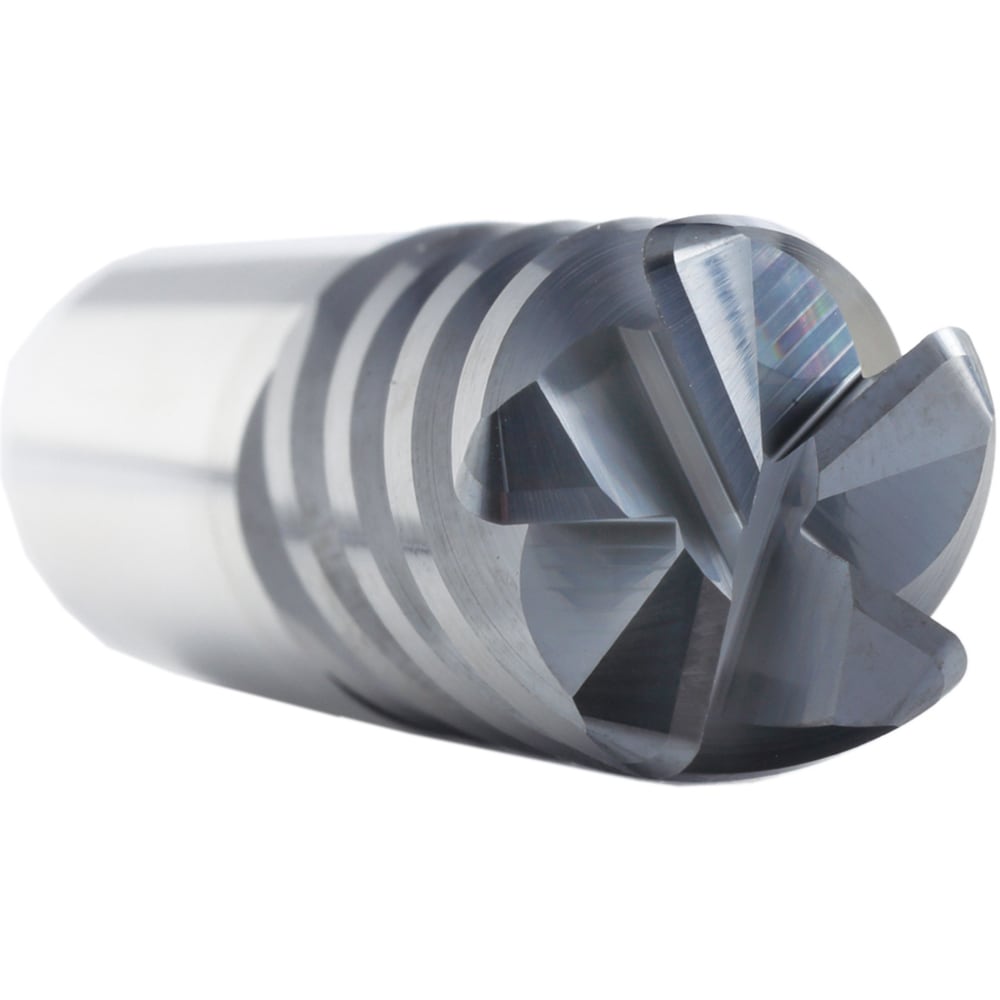

Corner Radius End Mill: 5/8" Dia, 2-1/4" LOC, 0.0300" Radius, 5 Flute, Solid Carbide
Item #: 30459275
Brand: Supermill
Model #: SM5F625LA-030
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 2-1/4 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Overall Length (Inch) | 5 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Normal |
| Overall Length (Decimal Inch) | 5.0000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.2500 |
| Length Type | Long |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Finishing |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Primary Workpiece Material | Hard Material; Superalloys & Titanium |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S; H |
| Material Grade | Micrograin |
| Series | SM5F-NB |
| Material Application | Hard Material; High-Temperature Alloy; Titanium |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Helix Style | High |
| Manufacturers Catalog Number | SM5F-NB |
