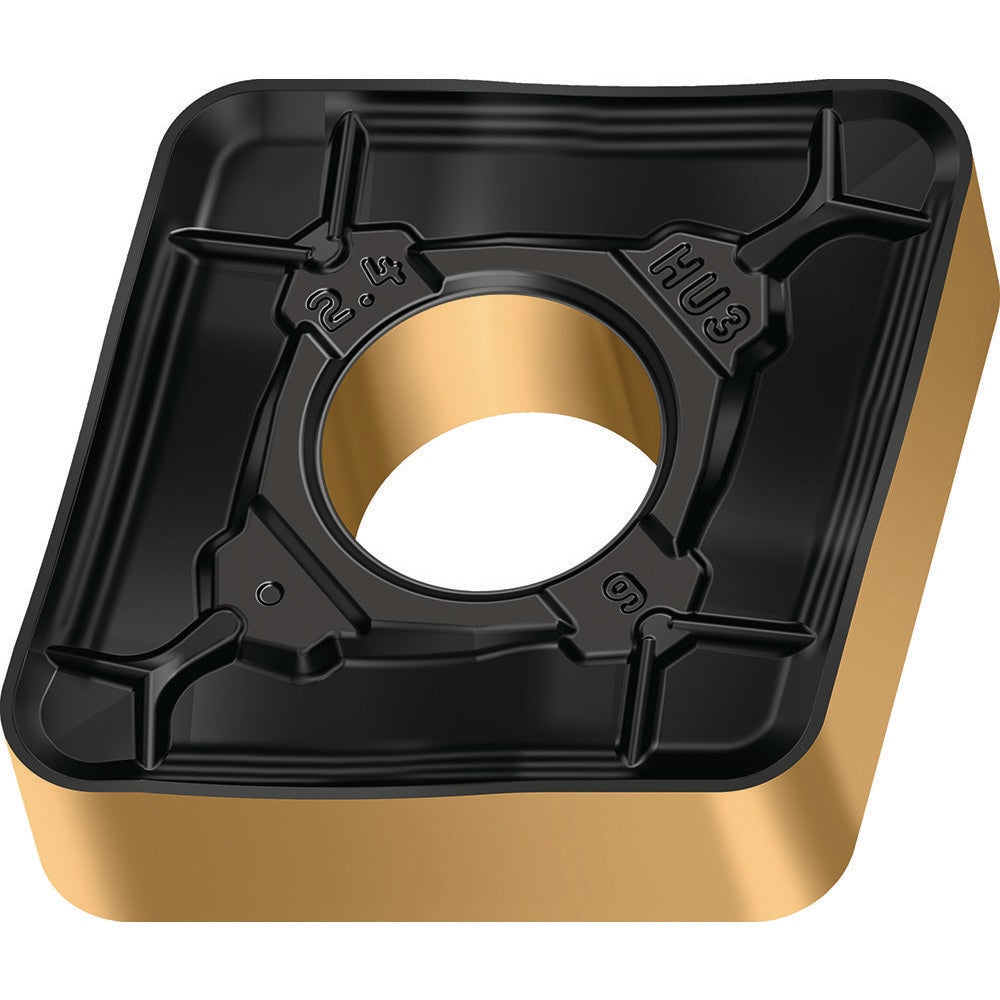

Turning Insert: CNMM644HU3 WPP30G, Carbide
Item #: 89878029
Brand: Walter
Model #: 8138363
Product Specifications
| ANSI Insert Code | CNMM644 |
| ISO Insert Code | CNMM190616 |
| Relief Angle | 0.000 |
| Insert Style | CNMM |
| Corner Radius (mm) | 1.60 |
| Included Angle | 80.00 |
| Manufacturer Grade | WPP30G |
| Coating/Finish | TiCN+Al2O3+(TiN) |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 6.35 |
| Series | CNMM |
| Inscribed Circle (mm) | 19.05 |
| Insert Material | Carbide |
| Insert Shape | Rhombic 80° |
| Chip Breaker Operation | Heavy Machining |
| Grade Characteristics | Stainless Steel (M) - High Toughness; Cast Iron (K) - High Toughness; Steel (P) - High Toughness |
| Side Clearance | Negative |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Mm) ( - 0 Decimals) | 7.9300 |
| Maximum Depth of Cut (mm) | 10.00 |
| Insert Holding Method | Screw |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Length (mm) | 19.34 |
| Manufacturers Catalog Number | CNMM190616-HU3 WPP30G |
| Chip Breaker | HU3 |
| Width (mm - 2 Decimals) | 19.05 |
| ANSI Size Code | 644 |
| ISO Size Code | 190616 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 19 |
| Country of Origin | Germany |
