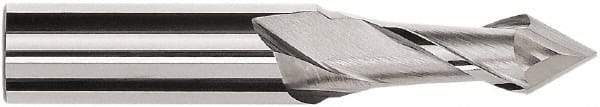

Magafor - 1mm Diam, 0.08" LOC, 2 Flute, 40° Point Angle, Solid Carbide Drill Mill - Bright Finish, 1-1/2" OAL, 0.118" Shank Diam
Item #: 31240385
Brand: Magafor
Model #: 88804001000
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high-speed applications on nonferrous materials, plastics and other tough-to-machine materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Material | Solid Carbide |
| Mill Diameter (mm) | 1.00 |
| Mill Diameter (Decimal Inch) | 0.0390 |
| Shank Diameter (Decimal Inch) | 0.118 |
| Length of Cut (Decimal Inch) | 0.0800 |
| Point Angle | 40 |
| Number of Flutes | 2 |
| Finish/Coating | Bright |
| Overall Length (Inch) | 1-1/2 |
| Material Grade | K15 Micrograin Carbide |
| Helix Angle | 30 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | -0.0000/-0.0010 |
| Shank Diameter Tolerance (Decimal Inch) | +0.00000/-0.00020 |
