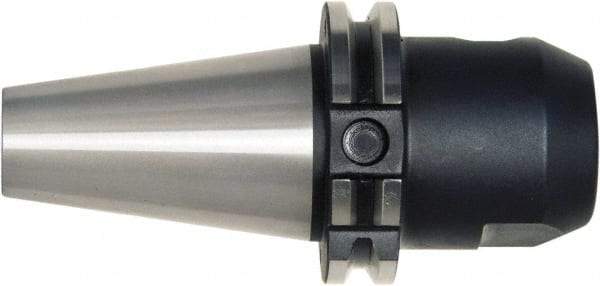

Bilz - CAT40 1-1/4" Shank Diam Taper Shank 1-1/4" Hole End Mill Holder/Adapter - 2-1/2" Nose Diam, 4-1/4" Projection, 5/8-11 Drawbar, Through-Spindle, Through-Bore & DIN Flange Coolant
Item #: 31192859
Brand: Bilz
Model #: 66651235M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 1-1/4 |
| Nose Diameter (Inch) | 2-1/2 |
| Projection (Inch) | 4-1/4 |
| Projection (Decimal Inch) | 4.2500 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 65.00 |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 6.9400 |
| Balanced to (RPM) | 8000 |
| TIR (mm) | 0.003 |
| Coolant Type | Through-Spindle, Through-Bore & DIN Flange |
| Drawbar Thread Size | 5/8-11 |
| Retention Knob Thread Size | 5/8-11 |
