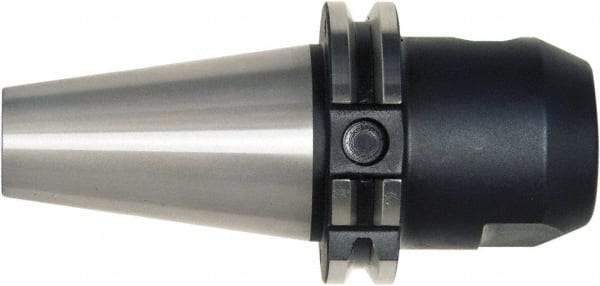

Bilz - CAT40 1/2" Shank Diam Taper Shank 1/2" Hole End Mill Holder/Adapter - 1.38" Nose Diam, 4.62" Projection, 5/8-11 Drawbar, Through-Spindle, Through-Bore & DIN Flange Coolant
Item #: 31192818
Brand: Bilz
Model #: 66651220M
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 1/2 |
| Nose Diameter (Inch) | 1.3800 |
| Projection (Inch) | 4.6200 |
| Projection (Decimal Inch) | 4.6200 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 46.00 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Decimal Inch) | 7.3100 |
| Balanced to (RPM) | 8000 |
| TIR (mm) | 0.003 |
| Coolant Type | Through-Spindle, Through-Bore & DIN Flange |
| Drawbar Thread Size | 5/8-11 |
| Retention Knob Thread Size | 5/8-11 |
