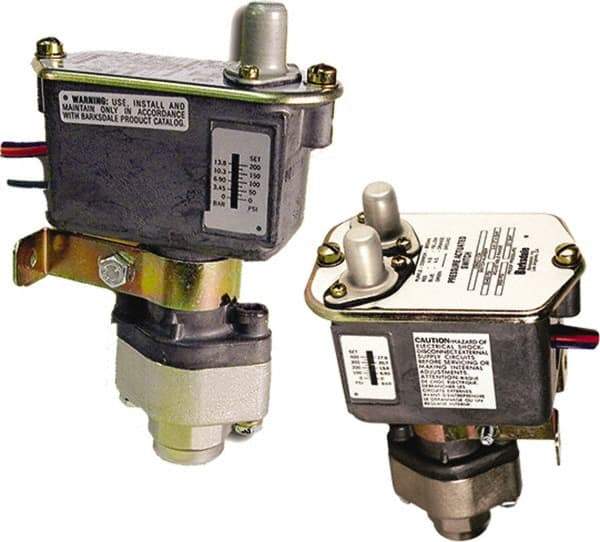

Barksdale - 15 to 200 psi Adjustable Range, 3,000 Max psi, Sealed Piston Pressure Switch - 1/4 NPT Female, 18in Free Leads, SPDT Contact, Nickel Plated Al Wetted Parts, 2% Repeatability
Item #: 31045388
Brand: Barksdale
Model #: C9612-0-CS
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 200 psi |
| Minimum Adjustable Range | 15 psi |
| Type | Sealed Piston Pressure Switch |
| Maximum Pressure Setting | 3000 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Female |
| Electrical Connection | 18in Free Leads |
| Amperage Rating | 10 Amp@125/250/480VAC; 0.03 Amp@250VDC |
| Contact Type | SPDT |
| Wetted Parts Material | Nickel Plated Al |
| Repeatability | 2% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 200 |
| Maximum Adjustable Range on Rise | 200 |
| Maximum Deadband | 30.00 |
| Maximum Setpoint Deadband | 30.00 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Adjustable Range on Fall | 15 |
| Minimum Adjustable Range on Rise | 15 |
| Minimum Deadband | 3 psi |
| Minimum Setpoint Deadband | 3.00 |
| Minimum Temperature (C) | -29 |
| Minimum Temperature (F) | -20 |
| Additional Information | Nickel Plated Aluminum; CSA Approved |
