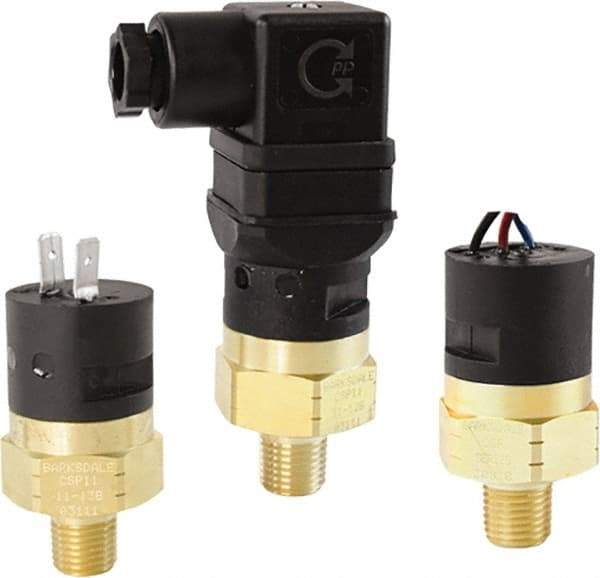

Barksdale - 3 to 7 psi Adjustable Range, 350 Max psi, Compact Pressure Switch - 1/8 NPT Male, Deutsch 2 Pins DT04-2P, SPST/ NO Contact, Brass Wetted Parts, 3% Repeatability
Item #: 31043375
Brand: Barksdale
Model #: CSP11-11-24V
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 7 psi |
| Minimum Adjustable Range | 3 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 350 psi |
| Thread Size | 1/8 |
| Thread Type | NPT Male |
| Electrical Connection | Deutsch 2 Pins DT04-2P |
| Amperage Rating | 5 Amp@125VAC |
| Contact Type | SPST/ NO |
| Wetted Parts Material | Brass |
| Repeatability | 3% |
| Contact Form | SPST N.O |
| Maximum Adjustable Range on Fall | 7 |
| Maximum Adjustable Range on Rise | 7 |
| Maximum Deadband | 1.20 |
| Maximum Setpoint Deadband | 1.20 |
| Maximum Temperature (C) | 80 |
| Maximum Temperature (F) | 176 |
| Minimum Adjustable Range on Fall | 3 |
| Minimum Adjustable Range on Rise | 3 |
| Minimum Deadband | 0.5 psi |
| Minimum Setpoint Deadband | 0.50 |
| Minimum Temperature (C) | -29 |
| Minimum Temperature (F) | -20 |
| Additional Information | Brass; Viton Diaphragm |
