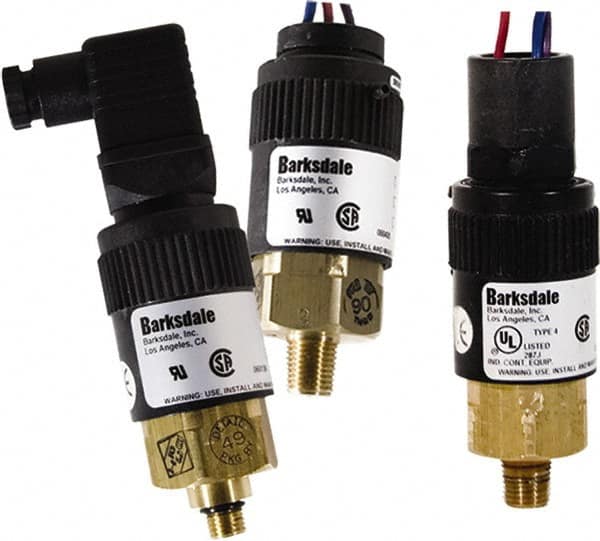

Barksdale - 1450 to 4,400 psi Adjustable Range, 7,000 Max psi, Compact Pressure Switch - 1/4 NPT Male, 1/2NPT Male Conduit Connector with Free Leads, SPDT Contact, Brass Wetted Parts, 2% Repeatability
Item #: 31039100
Brand: Barksdale
Model #: 96201-BB3-T4-V
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 4400 psi |
| Minimum Adjustable Range | 1450 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 7000 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Male |
| Electrical Connection | 1/2NPT Male Conduit Connector with Free Leads |
| Amperage Rating | 5 Amp@125/250VAC; 5 Amp@30VDC |
| Contact Type | SPDT |
| Wetted Parts Material | Brass |
| Repeatability | 2% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 4400 |
| Maximum Adjustable Range on Rise | 4400 |
| Maximum Deadband | 750.00 |
| Maximum Setpoint Deadband | 750.00 |
| Maximum Temperature (C) | 74 |
| Maximum Temperature (F) | 165 |
| Minimum Adjustable Range on Fall | 1450 |
| Minimum Adjustable Range on Rise | 1450 |
| Minimum Deadband | 100 psi |
| Minimum Setpoint Deadband | 100.00 |
| Minimum Temperature (C) | -40 |
| Minimum Temperature (F) | -40 |
| Additional Information | Brass; Viton O-Ring |
