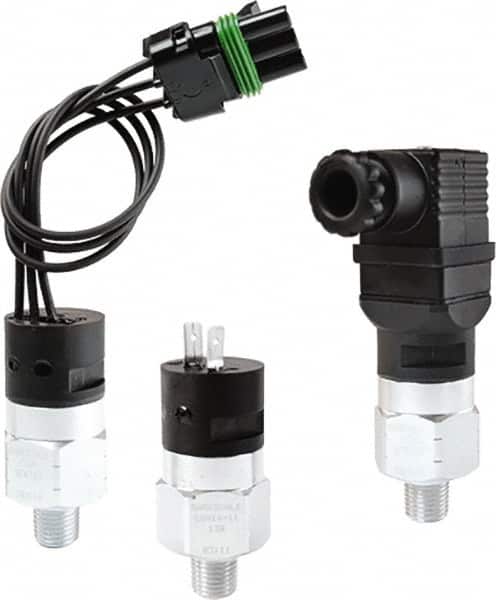

Barksdale - 2000 to 5,000 psi Adjustable Range, 9,000 Max psi, Compact Pressure Switch - 1/4 NPT Male, 18in Free Leads, SPDT Contact, Brass Wetted Parts, 3% Repeatability
Item #: 31036205
Brand: Barksdale
Model #: CSM18-31-11B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 5000 psi |
| Minimum Adjustable Range | 2000 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 9000 psi |
| Thread Size | 1/4 |
| Thread Type | NPT Male |
| Electrical Connection | 18in Free Leads |
| Amperage Rating | 5 Amp@125VAC |
| Contact Type | SPDT |
| Wetted Parts Material | Brass |
| Repeatability | 3% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 5000 |
| Maximum Adjustable Range on Rise | 5000 |
| Maximum Deadband | 400.00 |
| Maximum Setpoint Deadband | 400.00 |
| Maximum Temperature (C) | 80 |
| Maximum Temperature (F) | 176 |
| Minimum Adjustable Range on Fall | 2000 |
| Minimum Adjustable Range on Rise | 2000 |
| Minimum Deadband | 200 psi |
| Minimum Setpoint Deadband | 200.00 |
| Minimum Temperature (C) | -29 |
| Minimum Temperature (F) | -20 |
| Additional Information | Brass; BUNA-N Diaphragm |
