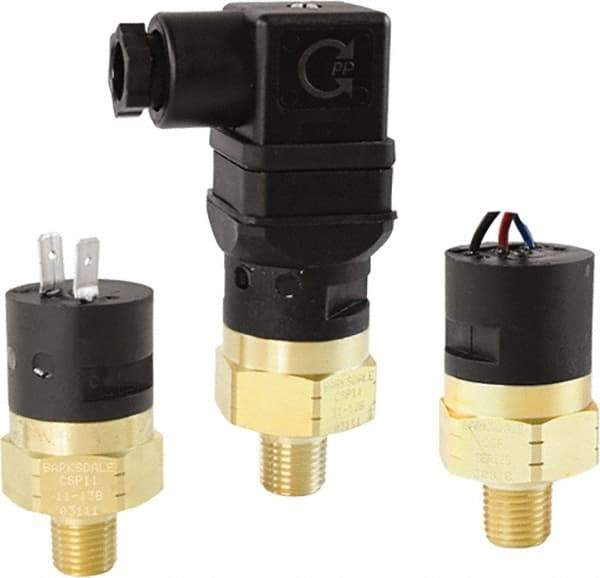

Barksdale - 10 to 10 psi Adjustable Range, 350 Max psi, Compact Pressure Switch - 7/16-20 UNF SAE, Deutsch 3 Pins DT04-3P, SPDT Contact, Brass Wetted Parts, 3% Repeatability
Item #: 31035892
Brand: Barksdale
Model #: CSP2-32-35B-10F
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Maximum Adjustable Range | 10 psi |
| Minimum Adjustable Range | 10 psi |
| Type | Compact Pressure Switch |
| Maximum Pressure Setting | 350 psi |
| Thread Size | 7/16-20 |
| Thread Type | UNF SAE |
| Electrical Connection | Deutsch 3 Pins DT04-3P |
| Amperage Rating | 10 Amp@125VAC; 6 Amp@250VAC |
| Contact Type | SPDT |
| Wetted Parts Material | Brass |
| Repeatability | 3% |
| Contact Form | SPDT |
| Maximum Adjustable Range on Fall | 10 |
| Maximum Adjustable Range on Rise | 10 |
| Maximum Deadband | 0.00 |
| Maximum Setpoint Deadband | 0.00 |
| Maximum Temperature (C) | 80 |
| Maximum Temperature (F) | 176 |
| Minimum Adjustable Range on Fall | 10 |
| Minimum Adjustable Range on Rise | 10 |
| Minimum Deadband | 0 psi |
| Minimum Setpoint Deadband | 0.00 |
| Minimum Temperature (C) | -29 |
| Minimum Temperature (F) | -20 |
| Additional Information | Brass; 10deg F Falling Set Point; Deutsch 3 Pins DT04-3P; BUNA-N Diaphragm |
