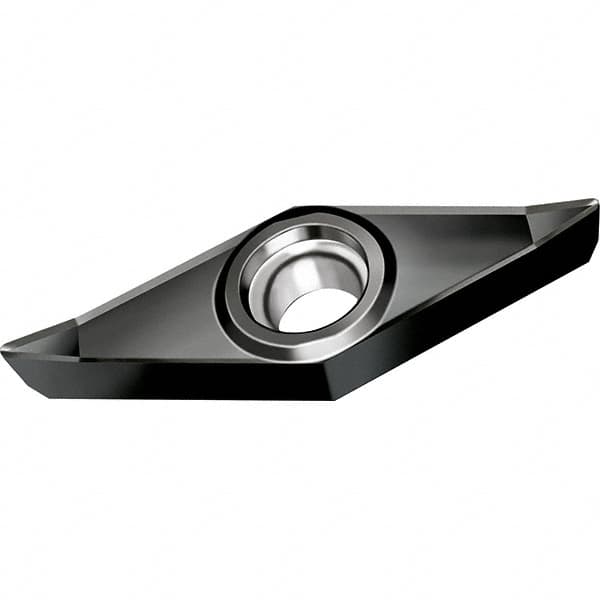

Walter - VCGT2.520.5 MN2 Grade WNN10 Carbide Turning Insert - Proprietary Finish, 35° Diamond, 5/16" Inscr Circle, 1/8" Thick, 0.008" Corner Radius
Item #: 31006380
Brand: Walter
Model #: 6955728
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCGT |
| Insert Size | 2.520.5 |
| Material | Carbide |
| Length (Decimal Inch) | 0.5160 |
| Inscribed Circle (Inch) | 5/16 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | WNN10 |
| Coating | Proprietary |
| Chip Breaker | MN2 |
| Insert Length (Decimal Inch) | 0.5160 |
| Overall Length (Decimal Inch) | 0.5160 |
| Hole Diameter (Decimal Inch) | 0.1340 |
| ISO Number | VCGT130302-MN2 WNN10 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 6955728 |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | VCGT |
| Maximum Depth of Cut (Decimal Inch) | 0.5160 |
| Cutting Width (mm) | 13.10 |
| Shape | Diamond |
