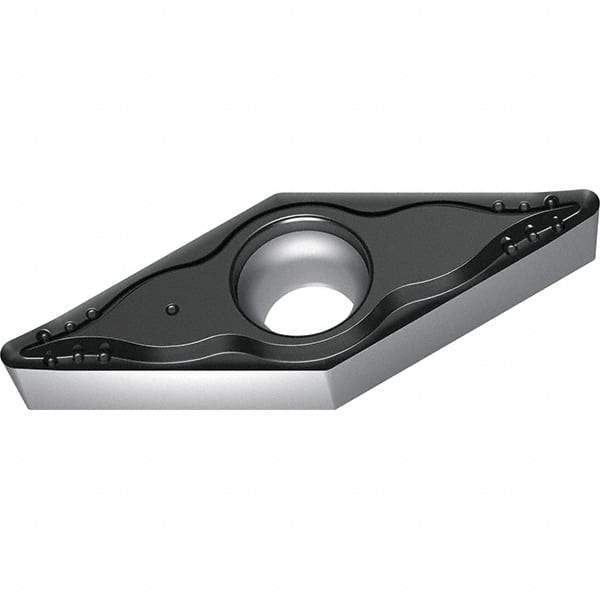

Walter - VCGT220.5 MM4 Grade WSM20S Carbide Turning Insert - TiALN/Al2O3 Finish, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 0.008" Corner Radius
Item #: 31005366
Brand: Walter
Model #: 7268538
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VCGT |
| Insert Size | 220.5 |
| Material | Carbide |
| Length (Decimal Inch) | 0.4360 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | WSM20S |
| Coating | TiALN/Al2O3 |
| Chip Breaker | MM4 |
| Insert Length (Decimal Inch) | 0.4360 |
| Overall Length (Decimal Inch) | 0.4360 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | VCGT110302-MM4 WSM20S |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 7268538 |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | VCGT |
| Maximum Depth of Cut (Decimal Inch) | 0.4360 |
| Cutting Width (mm) | 11.07 |
| Shape | Diamond |
