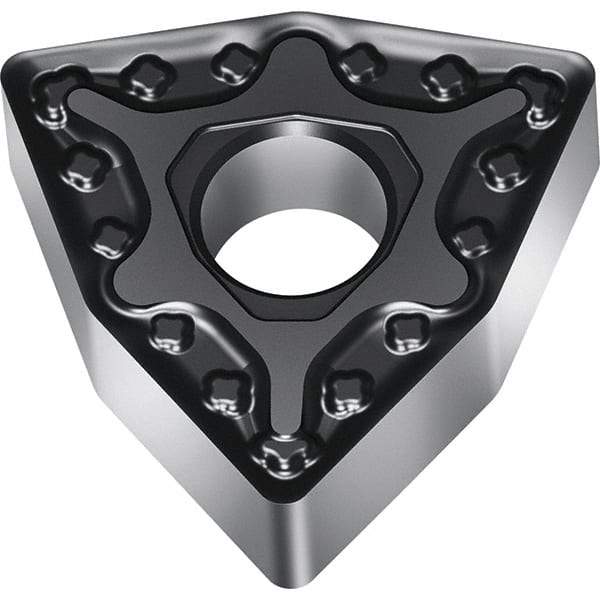

Walter - WNMG431 MM5 Grade WSM10S Carbide Turning Insert - TiALN/Al2O3 Finish, 80° Trigon, 1/2" Inscr Circle, 3/16" Thick, 0.016" Corner Radius
Item #: 31005291
Brand: Walter
Model #: 7251988
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WNMG |
| Insert Size | 431 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3420 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Corner Radius (Decimal Inch) | 0.0160 |
| Manufacturer's Grade | WSM10S |
| Coating | TiALN/Al2O3 |
| Chip Breaker | MM5 |
| Insert Length (Decimal Inch) | 0.3420 |
| Overall Length (Decimal Inch) | 0.3420 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | WNMG080404-MM5 WSM10S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 7251988 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | WNMG |
| Maximum Depth of Cut (Decimal Inch) | 0.3420 |
| Cutting Width (mm) | 8.69 |
| Shape | Trigon |
