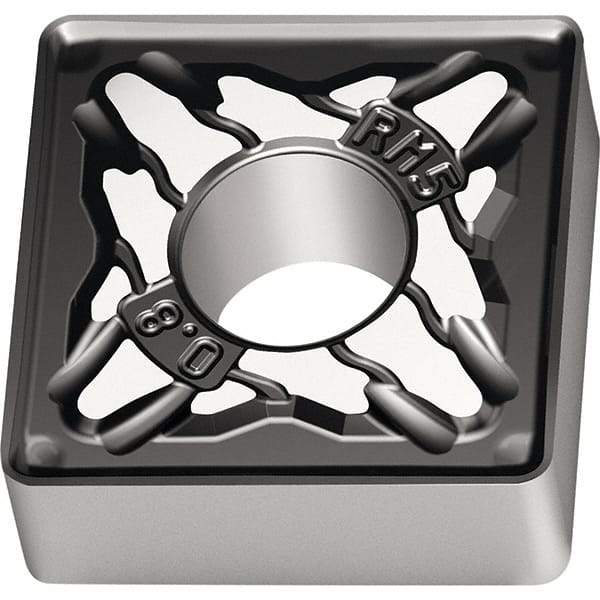

Walter - SNMG544 RM5 Grade WSM30S Carbide Turning Insert - TiALN/Al2O3 Finish, 90° Square, 5/8" Inscr Circle, 1/4" Thick, 0.063" Corner Radius
Item #: 31004740
Brand: Walter
Model #: 7251140
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 544 |
| Material | Carbide |
| Length (Inch) | 5/8 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Manufacturer's Grade | WSM30S |
| Coating | TiALN/Al2O3 |
| Chip Breaker | RM5 |
| Insert Length (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 0.6250 |
| Hole Diameter (Decimal Inch) | 0.2500 |
| ISO Number | SNMG150616-RM5 WSM30S |
| Coating Process | PVD |
| Manufacturers Catalog Number | 7251140 |
| Included Angle | 90 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | SNMG |
| Maximum Depth of Cut (Decimal Inch) | 0.6250 |
| Cutting Width (mm) | 15.88 |
| Shape | Square |
