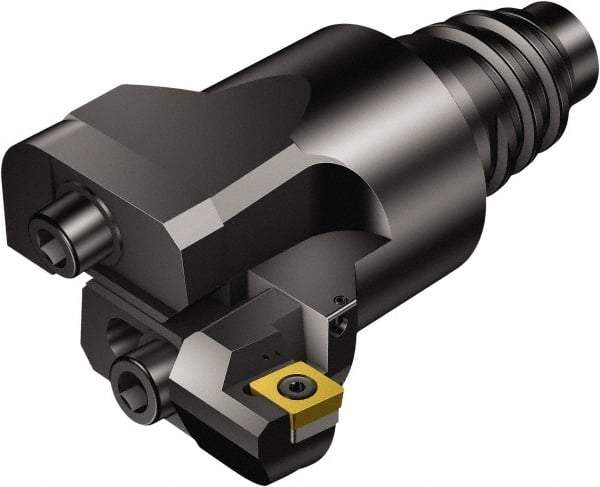

Sandvik Coromant - 32mm Min Bore Diam, Size E20 Steel Modular Boring Cutting Unit Head - 0.5906" Max Bore Depth, Through Coolant
Item #: 30950174
Brand: Sandvik Coromant
Model #: 7216947
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | E20 |
| Series Name | CoroBore BR10 |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.25984 |
| Maximum Bore Depth (mm) | 15.00 |
| Maximum Bore Depth (Decimal Inch) | 0.590551 |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Maximum Bore Diameter (mm) | 38.00 |
| Maximum Bore Diameter (Decimal Inch) | 1.4961 |
| Head Diameter Excluding Insert (mm) | 19.30 |
| Head Diameter Excluding Insert (Decimal Inch) | 0.7598 |
| Neck Diameter (mm) | 20.00 |
| Neck Diameter (Decimal Inch) | 0.787402 |
| Includes | 3021 010-030_Key; 3021 012-013_Key; 5680 041-01_Key; BR10-AA-CC06F-00_Slide; BR10-AC_Cover; EH20-BR20-A-015_Adaptor |
