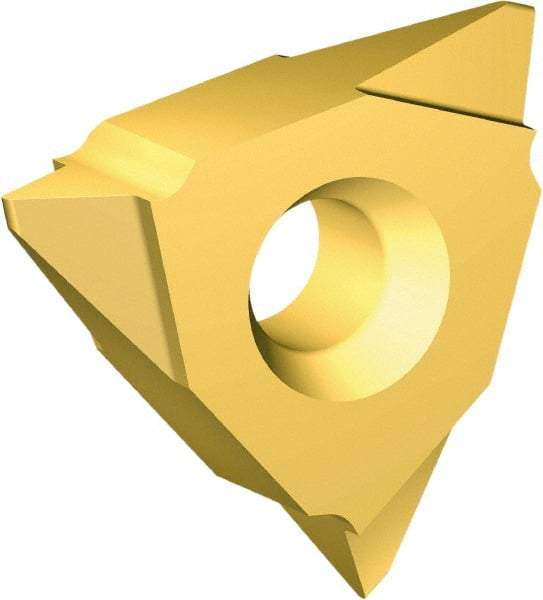

Vargus - 4VER22 Partial Profile 60° Grade VKX External On Edge Threading Insert - TiN Finish, 1/2" Inscribed Circle, Right Hand Cut
Item #: 30924112
Brand: Vargus
Model #: 62083
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 4VER |
| Insert Size | 22 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Thread Standard | Partial Profile 60 |
| Manufacturer's Grade | VKX |
| External Pitch (mm) | 10 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1874 |
| Rake | Positive |
| Material | Carbide |
| Coating | TiN |
| Hole Diameter (Decimal Inch) | 0.1921 |
| Material Grade | Micrograin |
| Coating Process | PVD |
| Rake Angle | 10 |
| Corner Radius (Decimal Inch) | 0.0209 |
