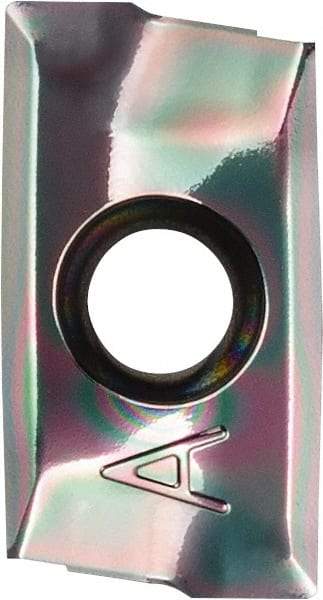

Kyocera - BDGT11T308 FR Grade PDL025 Carbide Milling Insert - Cr Finish, 3.8mm Thick, 1/32" Corner Radius
Item #: 30923502
Brand: Kyocera
Model #: 8845149
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BDGT |
| Insert Size | 11T308 |
| Material | Carbide |
| Manufacturer's Grade | PDL025 |
| Coating | Cr |
| Width (mm) | 6.70 |
| Length (mm) | 11.00 |
| Thickness (mm) | 3.80 |
| Corner Radius (Inch) | 1/32 |
| Hole Diameter (mm) | 2.80 |
| Relief Angle | 18.000 |
| Rake | Positive |
| Included Angle | 82 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | FR |
| Cutting Edge Style | Sharp |
| Cutter Series Compatibility | MEC |
