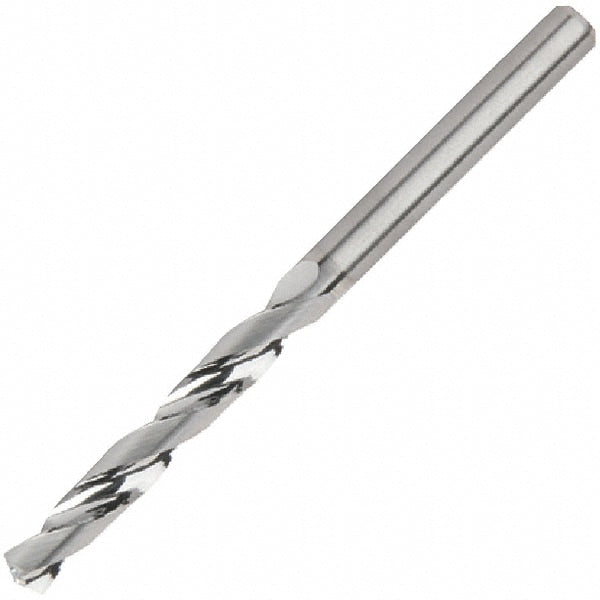

Jobber Drill: 1.20 mm Dia, 135 deg Point, Solid Carbide
Item #: 42638197
Brand: Kennametal
Model #: 5990956
Product Specifications
| Drill Bit Size (mm) | 10.20 |
| Drill Bit Size (Decimal Inch) | 0.4016 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | Bright/Uncoated |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Overall Length (mm) | 118.00 |
| Overall Length (Decimal Inch) | 4.6457 |
| Flute Length (mm) | 71.00 |
| Flute Length (Decimal Inch) | 2.7953 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 12 |
| Maximum Drilling Depth (mm) | 56.00 |
| Shank Length (mm) | 45 |
| Drill Point Length (mm) | 1.88 |
| Drill Bit Diameter Tolerance | 0.0003 to 0.0010 in |
| Shank Type | 3-Flat |
| Drill Bit Grade | Specialized |
| Drill Bit Size Range (Decimal Inch) | 0.4000 - 0.5000 |
| Drill Bit Size Range (mm) | 0.00 - 2.00 |
| UNSPSC Code | 23241634 |
