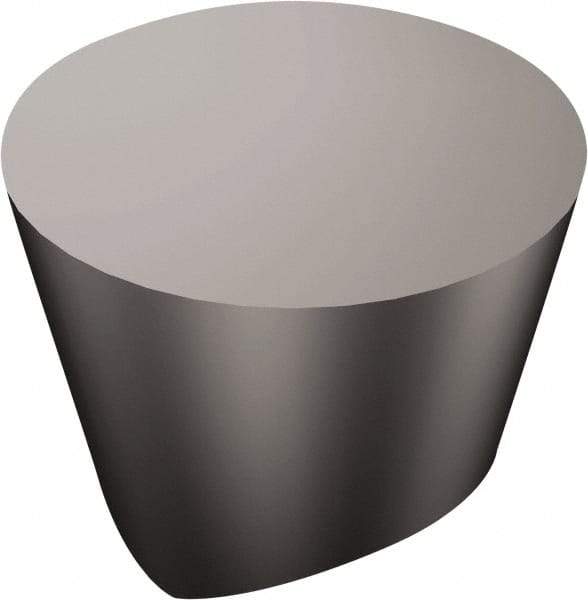

Sandvik Coromant - RPGX0604 E Grade 6160 Ceramic Turning Insert - Uncoated, Round, 6.35mm Inscr Circle, 4.76mm Thick, 3.175mm Corner Radius
Item #: 30849285
Brand: Sandvik Coromant
Model #: 7504613
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RPGX |
| Insert Size | 0604 |
| Material | Ceramic |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 3.175 |
| Corner Radius (Decimal Inch) | 0.1250 |
| Manufacturer's Grade | 6160 |
| Coating | Uncoated |
| Chip Breaker | E |
| ISO Number | RPGX060400E 6160 |
| Relief Angle | 11 |
| Manufacturers Catalog Number | RPGX23A 6160 |
| Primary Workpiece Material | S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Shape | Round |
