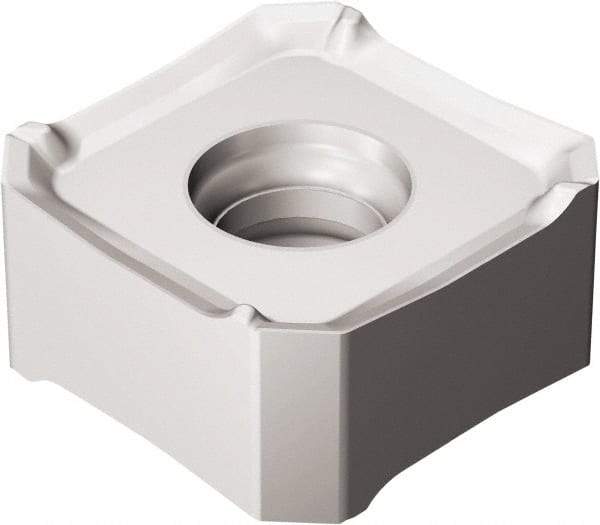

Sandvik Coromant - 345R13T5 MM Grade 1130 Carbide Milling Insert - AlTiCrN Finish, 5.95mm Thick, 13mm Inscribed Circle, 0.8mm Corner Radius
Item #: 30848519
Brand: Sandvik Coromant
Model #: 7101113
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 345R |
| Insert Size | 13T5 |
| Material | Carbide |
| Manufacturer's Grade | 1130 |
| Coating | AlTiCrN |
| Inscribed Circle (mm) | 13.00 |
| Inscribed Circle (Decimal Inch) | 0.5118 |
| Thickness (mm) | 5.95 |
| Thickness (Decimal Inch) | 0.2343 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Primary Workpiece Material | P |
| Secondary Workpiece Material | M |
| Coating Process | PVD |
| Shape | Square |
| Insert Hand | Right Hand |
| Chipbreaker | MM |
| Manufacturers Catalog Number | 345R-13T5E-MM 1130 |
