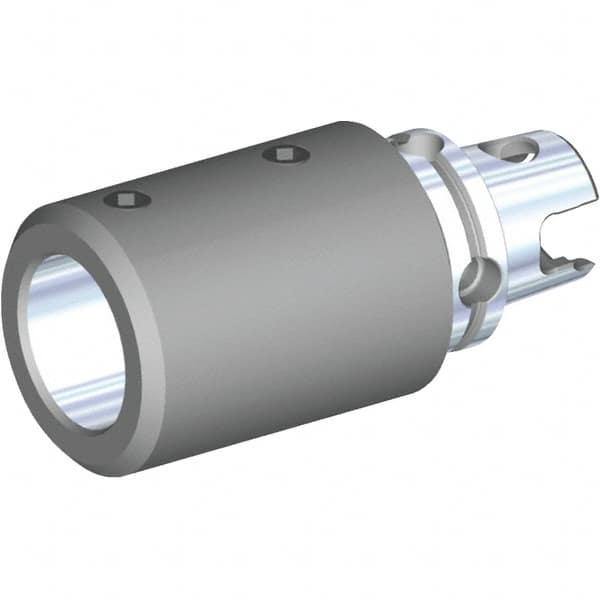

Kennametal - 40mm Bore Diam, 58mm Body Diam x 90mm Body Length, Boring Bar Holder & Adapter - 0.1969" Screw Thread Lock, 68mm Bore Depth, Internal Coolant
Item #: 30749634
Brand: Kennametal
Model #: 3950159
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Bore Diameter (mm) | 40.0000 |
| Bore Diameter (Decimal Inch) | 1.5748 |
| Connection Size | KM40TS |
| Body Diameter (mm) | 58.00 |
| Body Diameter (Decimal Inch) | 2.2835 |
| Body Length (mm) | 90.00 |
| Body Length (Decimal Inch) | 3.5433 |
| Lock Screw Size (mm) | 5.00 |
| Lock Screw Size (Decimal Inch) | 0.1969 |
| Lock Screw Compatibility | MS-1213 |
| Bore Depth (mm) | 68.00 |
| Bore Depth (Decimal Inch) | 2.6772 |
| Coolant Type | Internal |
