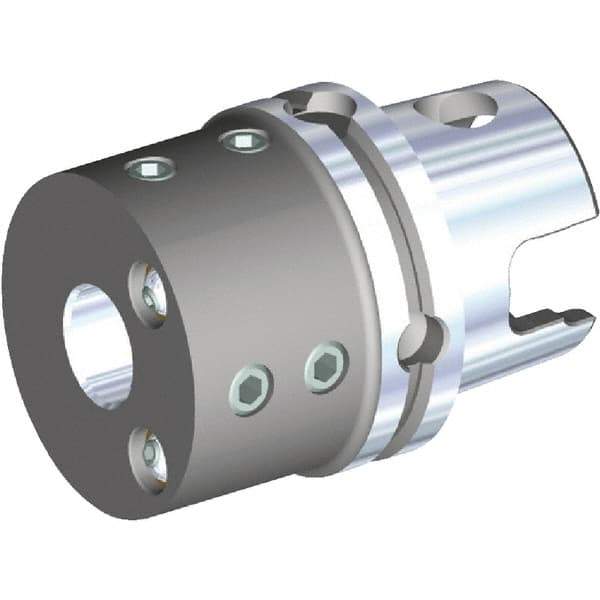

Kennametal - 40mm Bore Diam, 80mm Body Diam x 105mm Body Length, Boring Bar Holder & Adapter - 0.315" Screw Thread Lock, 76mm Bore Depth, Internal & External Coolant
Item #: 30748594
Brand: Kennametal
Model #: 3896952
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Bore Diameter (mm) | 40.0000 |
| Bore Diameter (Decimal Inch) | 1.5748 |
| Connection Size | KM80ATC |
| Body Diameter (mm) | 80.00 |
| Body Diameter (Decimal Inch) | 3.1496 |
| Body Length (mm) | 105.00 |
| Body Length (Decimal Inch) | 4.1339 |
| Lock Screw Size (mm) | 8.00 |
| Lock Screw Size (Decimal Inch) | 0.3150 |
| Lock Screw Compatibility | MS-1947 |
| Bore Depth (mm) | 76.00 |
| Bore Depth (Decimal Inch) | 2.9921 |
| Coolant Type | Internal & External |
