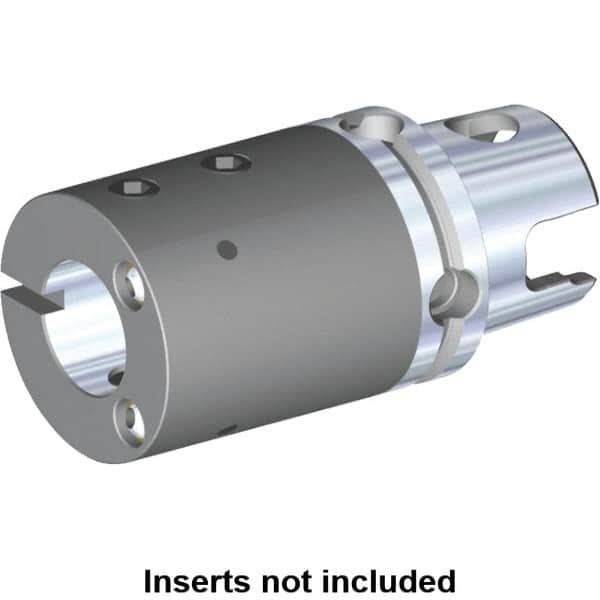

Kennametal - 10mm Bore Diam, 40mm Body Diam x 55mm Body Length, Boring Bar Holder & Adapter - 0.1575" Screw Thread Lock, 48mm Bore Depth, Internal & External Coolant
Item #: 30747315
Brand: Kennametal
Model #: 3790549
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Bore Diameter (mm) | 10.0000 |
| Bore Diameter (Decimal Inch) | 0.3937 |
| Connection Size | KM50TS |
| Body Diameter (mm) | 40.00 |
| Body Diameter (Decimal Inch) | 1.5748 |
| Body Length (mm) | 55.00 |
| Body Length (Decimal Inch) | 2.1654 |
| Lock Screw Size (mm) | 4.00 |
| Lock Screw Size (Decimal Inch) | 0.1575 |
| Lock Screw Compatibility | MS-1211 |
| Bore Depth (mm) | 48.00 |
| Bore Depth (Decimal Inch) | 1.8898 |
| Coolant Type | Internal & External |
