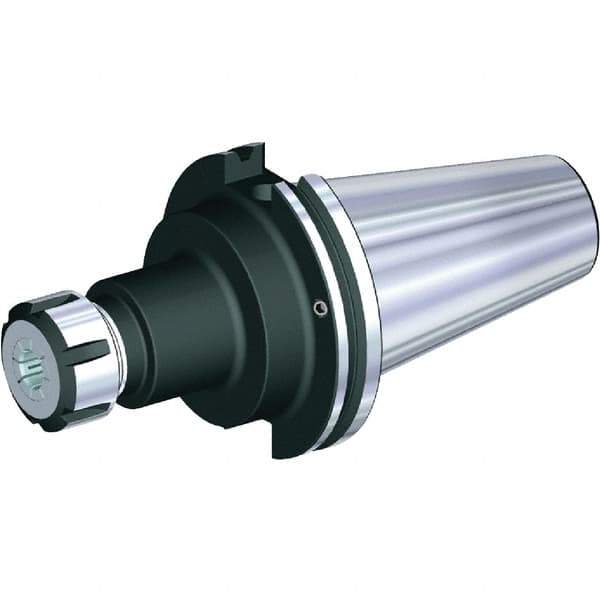

Kennametal - 1mm to 16mm Capacity, 2-1/2" Projection, CVKV40 Taper Shank, ER25 Collet Chuck - Through-Spindle & DIN Flange Coolant
Item #: 30738041
Brand: Kennametal
Model #: 3860223
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER25 |
| Shank Type | Taper Shank |
| Taper Size | CVKV40 |
| Projection (Inch) | 2-1/2 |
| Projection (Decimal Inch) | 2.5000 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0394 |
| Minimum Collet Capacity (mm) | 1.00 |
| Maximum Collet Capacity (mm) | 16.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.6299 |
| Actuator Type | Drawbar, Wrench |
| Nose Diameter (mm) | 42.00 |
| Nose Diameter (Decimal Inch) | 1.6535 |
| PSC Code | 5136 |
| Balanced to (RPM) | 15000 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 1.6535 |
| Collet Nut Diameter (mm) | 42.00 |
