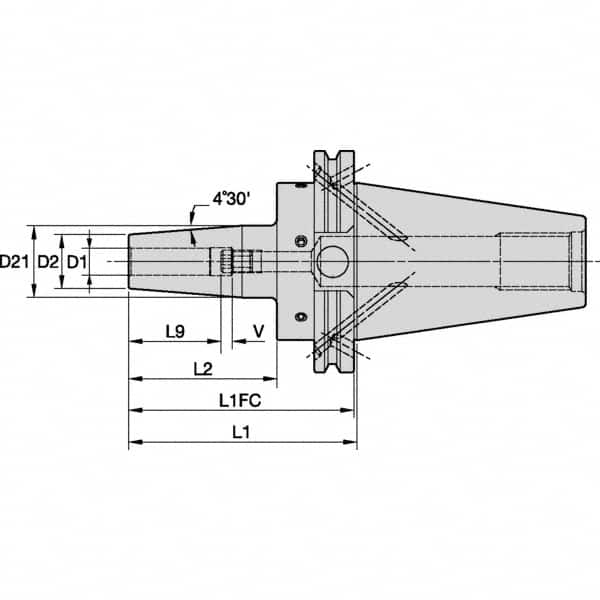

Kennametal - 32mm Hole Diam, CVKV40 Taper Shank Shrink Fit Tool Holder & Adapter - 101.6mm Projection, 44mm Nose Diam, 51mm Clamping Depth, 20,000 RPM, Through Coolant
Item #: 30737647
Brand: Kennametal
Model #: 3860173
Exact Tooling IR#: 04
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | CVKV40 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Hole Diameter (mm) | 32.00 |
| Projection (mm) | 101.60 |
| Projection (Decimal Inch) | 4.0000 |
| Nose Diameter (mm) | 44.00 |
| Nose Diameter (Decimal Inch) | 1.7323 |
| Through Coolant | Through Coolant |
| Clamping Depth (mm) | 51.00 |
| Clamping Depth (Decimal Inch) | 2.0079 |
| Balanced to (RPM) | 20000 |
