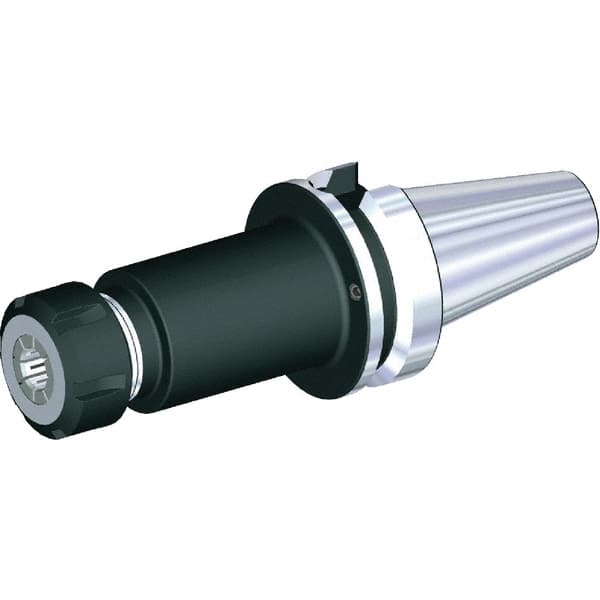

Kennametal - 3mm to 26mm Capacity, 80mm Projection, BTKV50 Taper Shank, ER40 Collet Chuck - Through-Spindle & DIN Flange Coolant
Item #: 30737316
Brand: Kennametal
Model #: 3857136
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | Taper Shank |
| Taper Size | BTKV50 |
| Projection (mm) | 80.00 |
| Projection (Decimal Inch) | 3.1500 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.1181 |
| Minimum Collet Capacity (mm) | 3.00 |
| Maximum Collet Capacity (mm) | 26.00 |
| Maximum Collet Capacity (Decimal Inch) | 1.0236 |
| Actuator Type | Wrench |
| Nose Diameter (mm) | 63.00 |
| Nose Diameter (Decimal Inch) | 2.4803 |
| PSC Code | 5136 |
| Balanced to (RPM) | 15000 |
| Coolant Type | Through-Spindle & DIN Flange |
| Collet Nut Diameter (Decimal Inch) | 2.4803 |
| Collet Nut Diameter (mm) | 63.00 |
