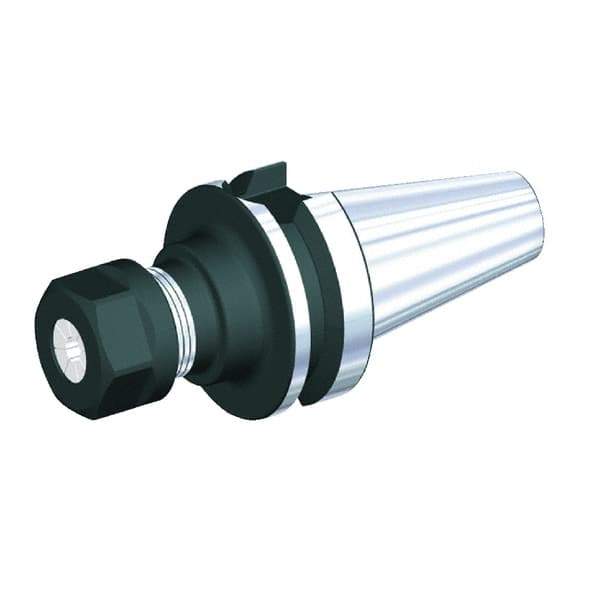

Kennametal - 0.5mm to 13mm Capacity, 100mm Projection, BT30 Taper Shank, ER20 Collet Chuck - Through-Spindle
Item #: 30735948
Brand: Kennametal
Model #: 3847458
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER20 |
| Shank Type | Taper Shank |
| Taper Size | BT30 |
| Projection (mm) | 100.00 |
| Projection (Decimal Inch) | 3.9370 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 13.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.5118 |
| Actuator Type | Wrench |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.3386 |
| Collet Nut Diameter (mm) | 34.00 |
