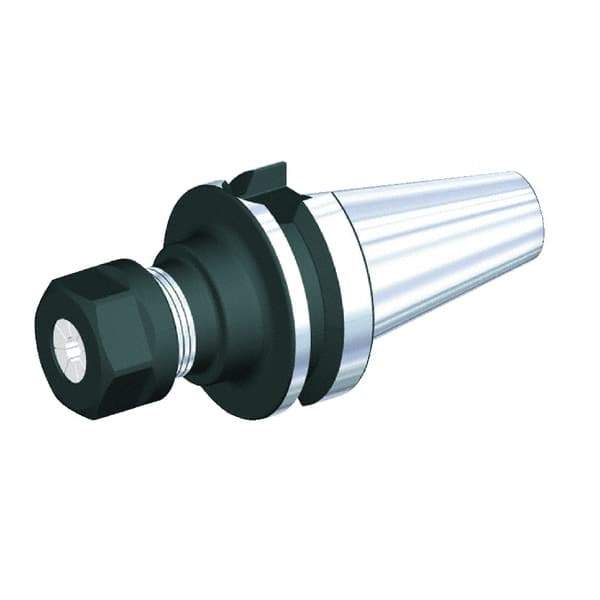

Kennametal - 0.5mm to 10mm Capacity, 150mm Projection, BT30 Taper Shank, ER16 Collet Chuck - Through-Spindle
Item #: 30735922
Brand: Kennametal
Model #: 3847457
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Taper Shank |
| Taper Size | BT30 |
| Projection (mm) | 150.00 |
| Projection (Decimal Inch) | 5.9055 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Maximum Collet Capacity (Decimal Inch) | 0.3937 |
| Actuator Type | Wrench |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 1.1024 |
| Collet Nut Diameter (mm) | 28.00 |
