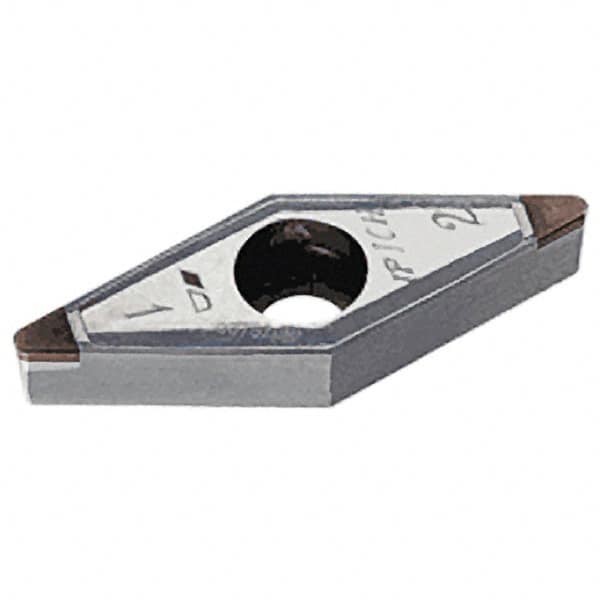

Iscar - VBGW332 M2 Grade IB10HC CBN Turning Insert - 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 30732432
Brand: Iscar
Model #: 6864279
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | VBGW |
| Insert Size | 332 |
| Material | CBN |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6540 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | IB10HC |
| Material Grade | Fine Grain |
| Chip Breaker | M2 |
| Insert Length (Decimal Inch) | 0.6540 |
| Hole Diameter (mm) | 4.39 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | VBGW 332-M2 |
| Relief Angle | 5 |
| Coating Process | PVD |
| Included Angle | 35 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 0.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Insert Holding Method | Screw |
| FullRadius | No |
| Shape | Diamond |
