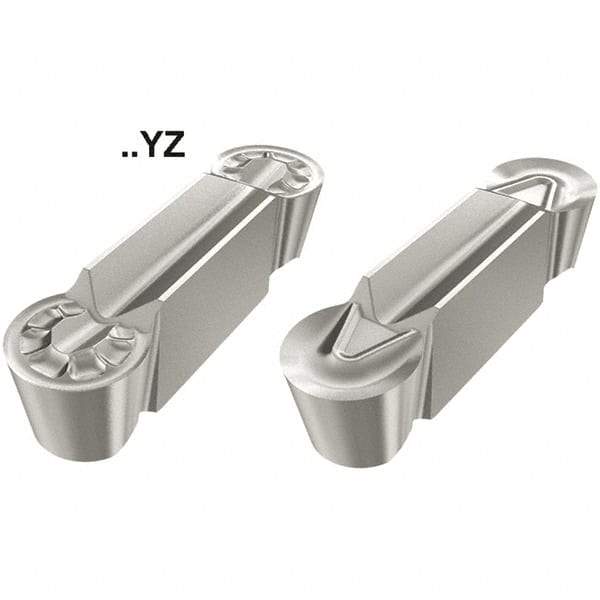

Iscar - 8040FSPA Grade ID5, 8mm Cutting Width Polycrystalline Diamond (PCD) Grooving Insert - 3.99mm Max Depth of Cut, Neutral, 3.99mm Corner Radius
Item #: 30732234
Brand: Iscar
Model #: 6405529
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | FSPA |
| Insert Size | 8040 |
| Material | Polycrystalline Diamond (PCD) |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 3.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Manufacturer's Grade | ID5 |
| Insert Hand | Neutral |
| Cutting Height (mm) | 8.41 |
| Cutting Height (Decimal Inch) | 0.3310 |
| Relief Angle | 10 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning; Undercutting |
| Corner Radius (mm) | 3.99 |
| Corner Radius (Decimal Inch) | 0.1570 |
| Overall Length (mm) | 29.69 |
| Overall Length (Decimal Inch) | 1.1690 |
| Series | Fix-Grip |
