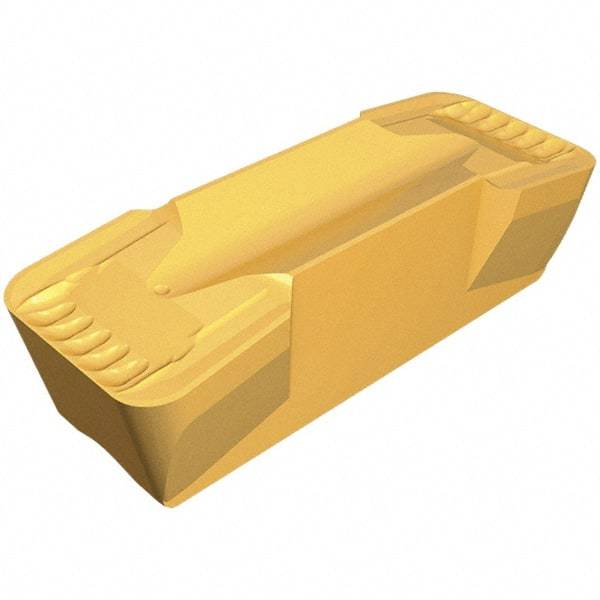

Iscar - 1000120GDPY Grade IC830, 10.01mm Cutting Width Carbide Grooving Insert - 5.99mm Max Depth of Cut, Neutral, 2.01mm Corner Radius, AlTiN/TiN Finish
Item #: 30731988
Brand: Iscar
Model #: 6405031
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GDPY |
| Insert Size | 1000120 |
| Material | Carbide |
| Cutting Width (mm) | 10.01 |
| Cutting Width (Decimal Inch) | 0.3940 |
| Maximum Depth of Cut (mm) | 5.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.2360 |
| Manufacturer's Grade | IC830 |
| Coating | AlTiN/TiN |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Corner Radius (mm) | 2.01 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Coating Process | PVD |
| Overall Length (mm) | 29.97 |
| Overall Length (Decimal Inch) | 1.1800 |
| Series | Cut Grip |
