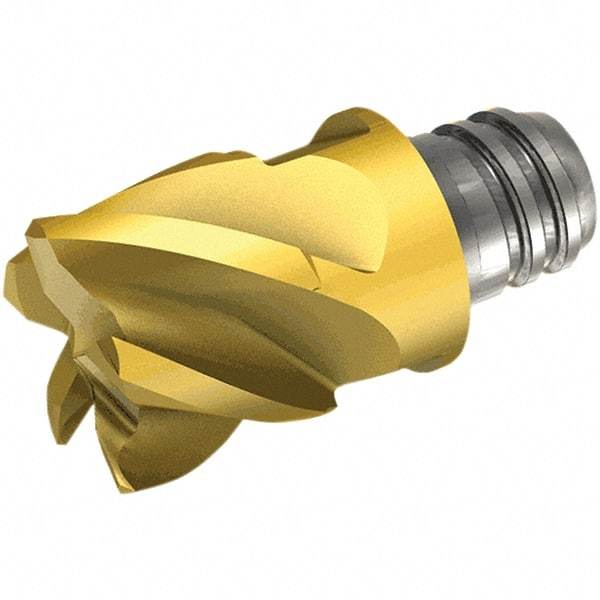

Iscar - MM EC-H Grade IC308 Carbide End Milling Tip Insert - TiCN Finish, 5 Flutes, 3/4" Cutting Diam, 0.63" Depth of Cut, 1" Extension, 35 to 41° Helix
Item #: 30730782
Brand: Iscar
Model #: 5623390
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium carbonitride (TiCN) is harder and more wear resistant than TiN. It is commonly used on stainless steel, cast iron and aluminum alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM EC-H |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC308 |
| Depth of Cut (Decimal Inch) | 0.6300 |
| Number of Flutes | 5 |
| Coating | TiCN |
| Milling Tip Full Description | Roughing & Finishing End Mill |
| Coating Process | PVD |
| Extension From Holder (Decimal Inch) | 1.0040 |
| Thread Size | T12 |
| Lead Angle | 45 |
| Helix Angle | 35 to 41 |
| Style | MM EC.750H62C24-5T12 |
