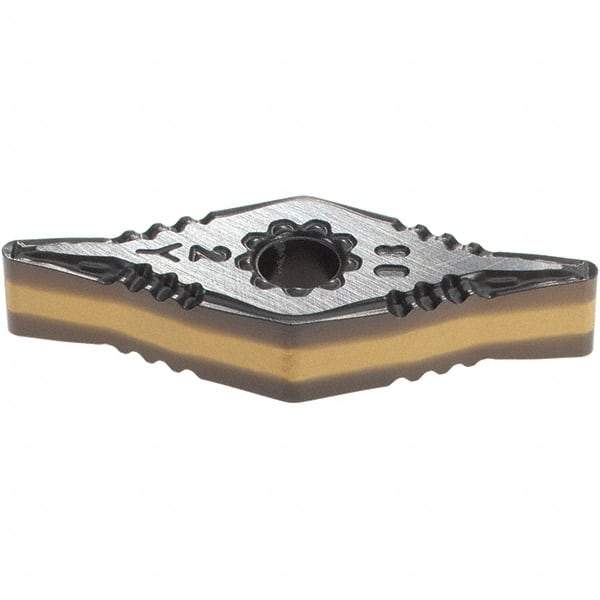

Iscar - YNMG332 F3P Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 30727697
Brand: Iscar
Model #: 5566775
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | YNMG |
| Insert Size | 332 |
| Material | Carbide |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6540 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | F3P |
| Insert Length (Decimal Inch) | 0.6540 |
| ISO Number | YNMG 332-F3P |
| Coating Process | CVD |
| Secondary Workpiece Material | None |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Insert Holding Method | Pin & Clamp |
| FullRadius | No |
| Shape | Diamond |
