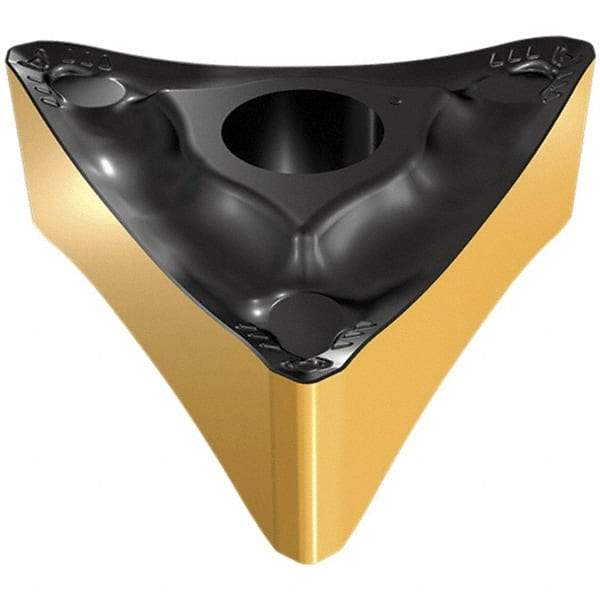

Iscar - TNMX342 M3PW Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 3/8" Inscr Circle, 0.173 Thick, 1/32" Corner Radius
Item #: 30727648
Brand: Iscar
Model #: 5560569
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMX |
| Insert Size | 342 |
| Material | Carbide |
| Length (mm) | 16.51 |
| Length (Decimal Inch) | 0.6500 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1730 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | M3PW |
| Insert Length (Decimal Inch) | 0.6500 |
| ISO Number | TNMX 342-M3PW |
| Rake | Positive |
| Relief Angle | 0 |
| Coating Process | CVD |
| Secondary Workpiece Material | None |
| Included Angle | 60 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 5.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Insert Holding Method | Pin & Clamp |
| FullRadius | No |
| Shape | Triangle |
