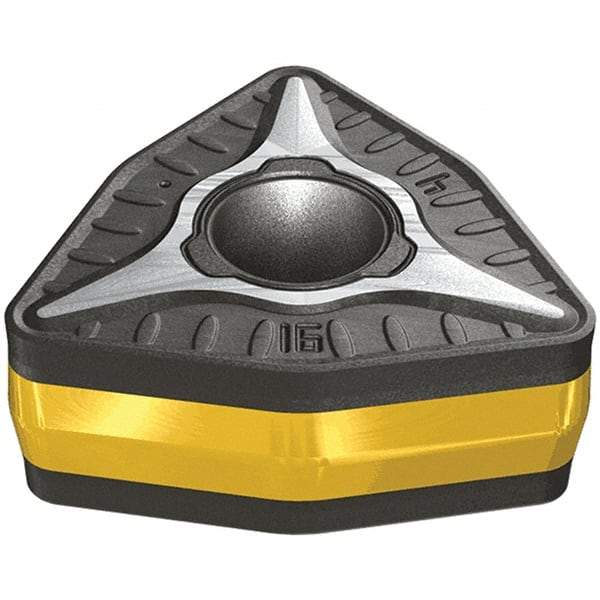

Iscar - WOMG554 T3P-IQ Grade IC8250 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Trigon, 5/8" Inscr Circle, 5/16" Thick, 1/16" Corner Radius
Item #: 30727101
Brand: Iscar
Model #: 5508895
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WOMG |
| Insert Size | 554 |
| Material | Carbide |
| Length (mm) | 10.87 |
| Length (Decimal Inch) | 0.4280 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | IC8250 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | T3P-IQ |
| Insert Length (Decimal Inch) | 0.4280 |
| ISO Number | WOMG 554-T3P-IQ |
| Relief Angle | 0 |
| Coating Process | CVD |
| Secondary Workpiece Material | None |
| Included Angle | 80 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 2.79 |
| Maximum Depth of Cut (Decimal Inch) | 0.1100 |
| Insert Holding Method | Lever Lock |
| FullRadius | No |
| Shape | Trigon |
