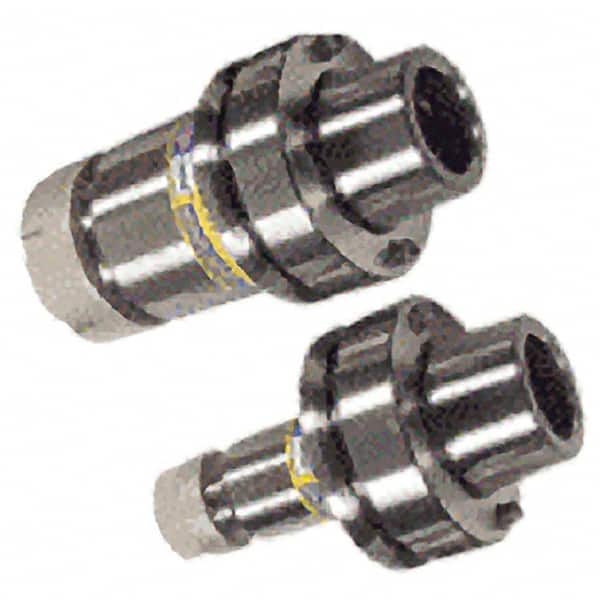

Iscar - 0.51mm to 10.01mm Capacity, 85mm Projection, HSK80F Hollow Taper, ER16 Collet Chuck - 0.0001" TIR, Through-Spindle
Item #: 30726830
Brand: Iscar
Model #: 4592755
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Hollow Taper |
| Taper Size | HSK80F |
| Projection (mm) | 85.00 |
| Projection (Decimal Inch) | 3.3500 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0200 |
| Minimum Collet Capacity (mm) | 0.51 |
| Maximum Collet Capacity (mm) | 10.01 |
| Maximum Collet Capacity (Decimal Inch) | 0.3940 |
| Nose Diameter (mm) | 27.99 |
| Nose Diameter (Decimal Inch) | 1.1020 |
| PSC Code | 5136 |
| Balanced to (RPM) | 33000 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| Coolant Type | Through-Spindle |
